HiPo MPP-96 Microplate Photometer

Description

For additional information

ask a question

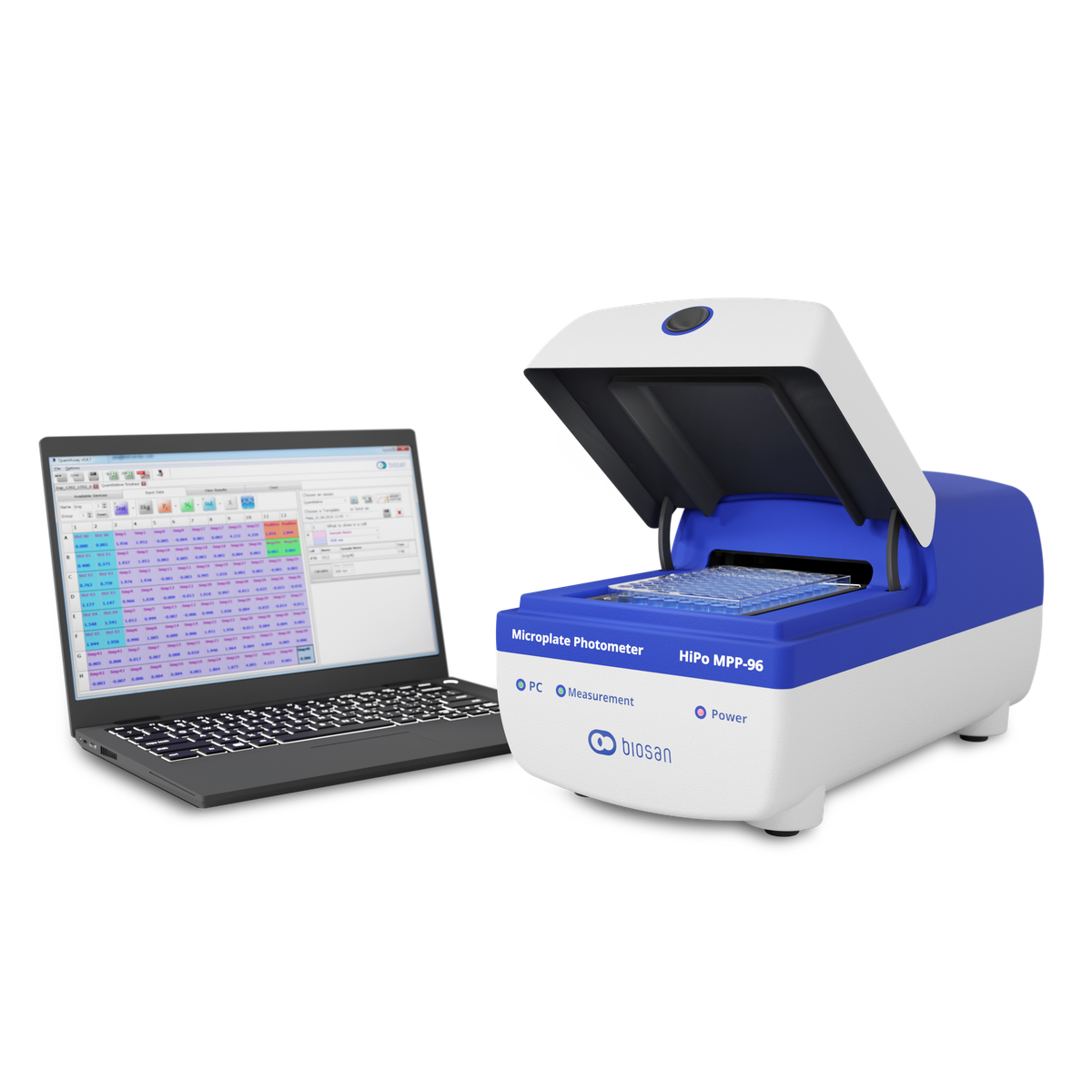

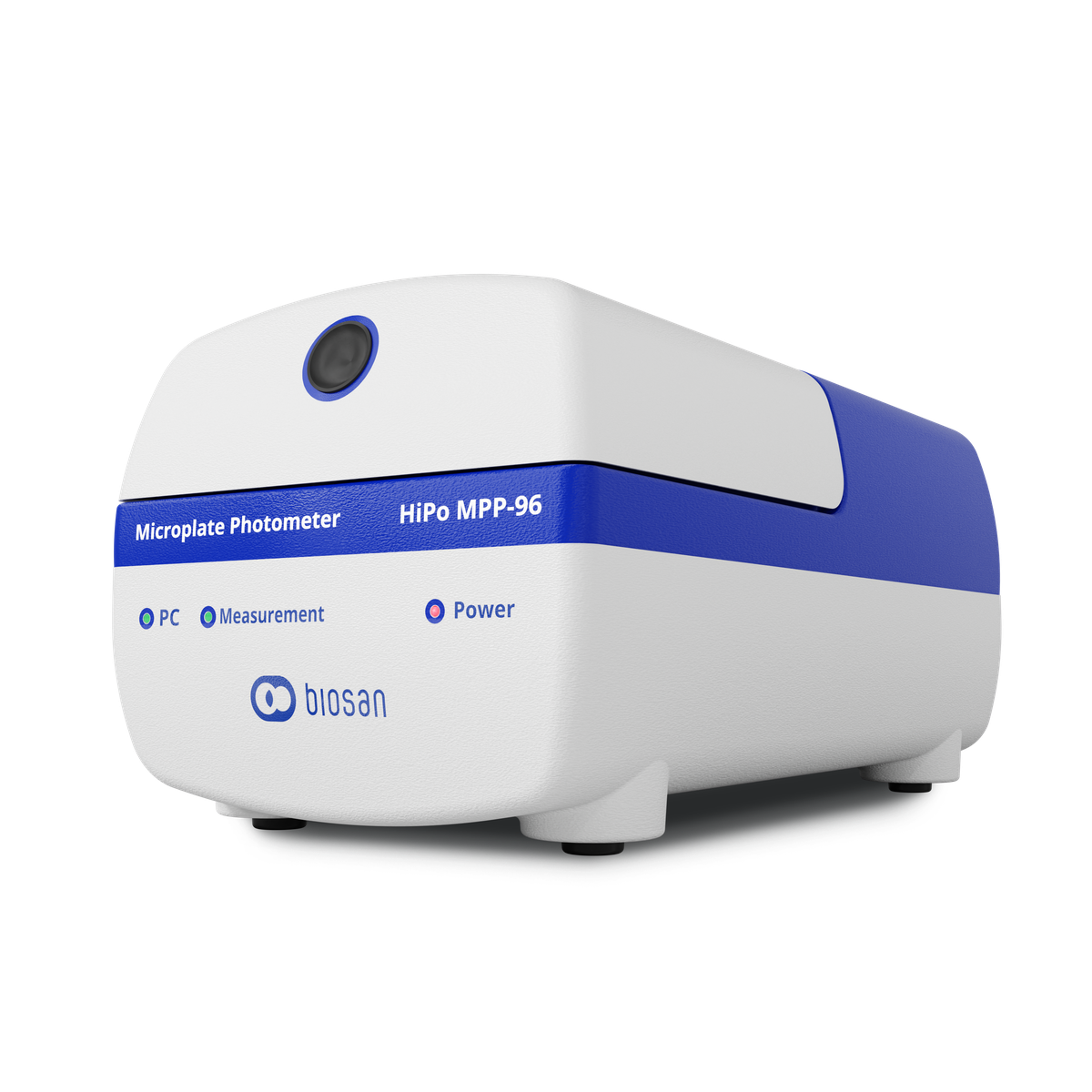

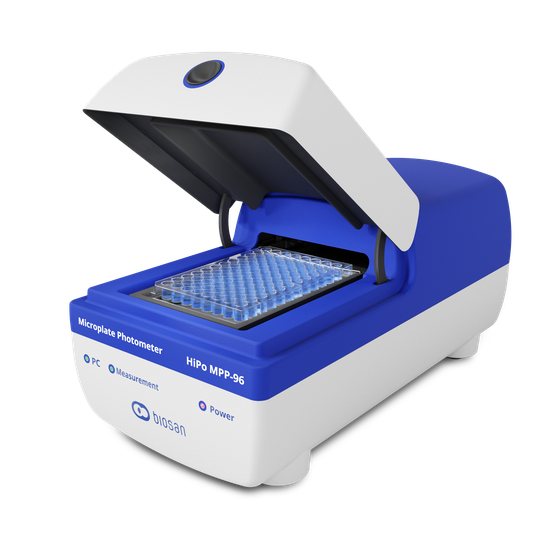

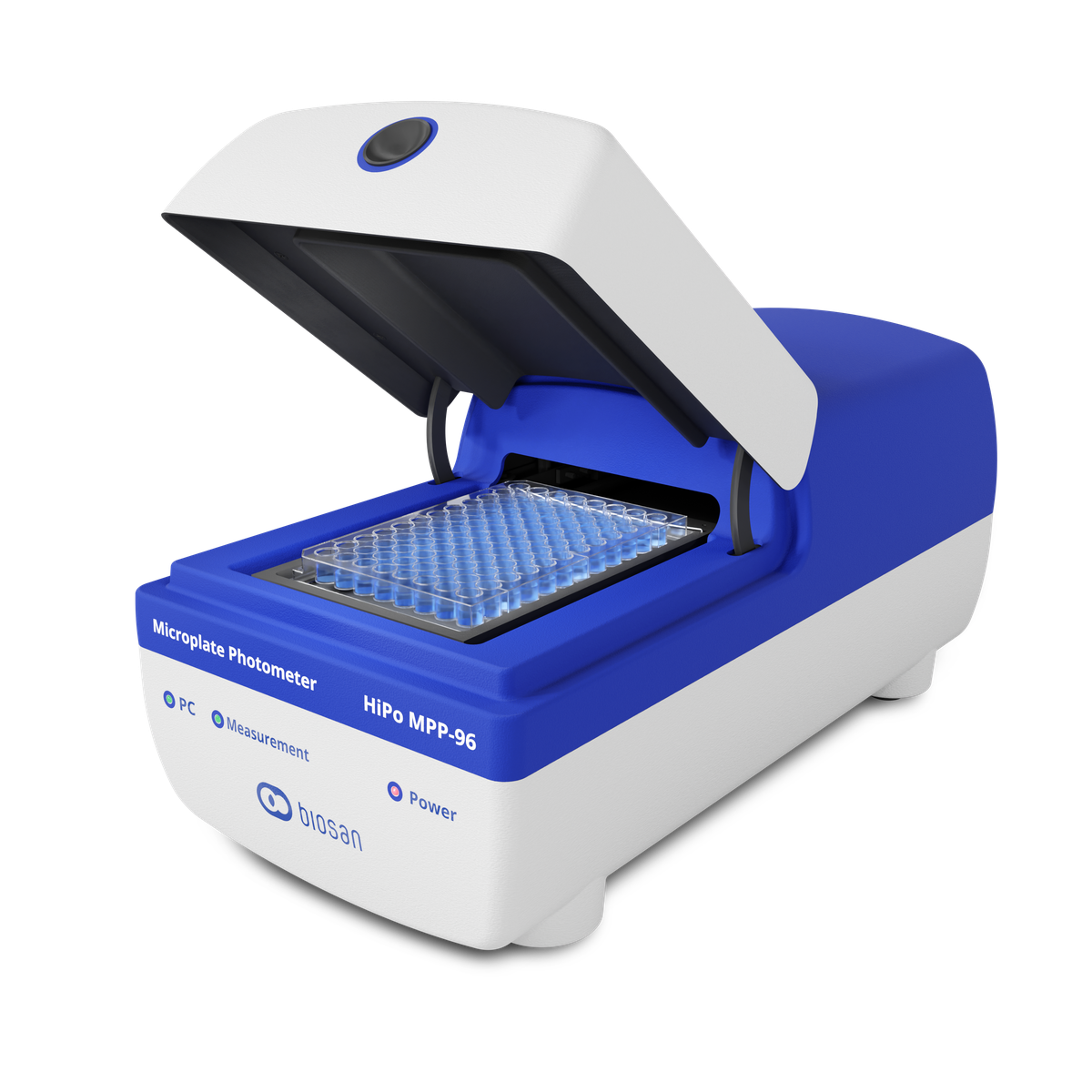

Microplate Photometer HiPo MPP-96 is a compact tabletop device for measuring the results of ELISA and microbiological studies in 96-well microplates. Photometer is controlled and outputs data via computer. The device is supplied with specialized software QuantAssay.

Microplate Photometer HiPo MPP-96 can be used with IDEXX xChekPlus™ software. Please contact your distributor for more information.

Features of QuantAssay software:

  • ELISA assays of any complexity can be carried out via robust assay editor with help of Assay Wizzard
  • Quantitative assay includes up to 20 standards
  • Avidity/Affinity assays
  • Multiplex assays with up to 7 assays on one plate
  • Qualitative assay includes up to 11 controls
  • BestFit function for selecting the best calibration curve
  • User friendly interface: get your results in 3 clicks
  • Save, load and export results
  • Creates visual reports

Accuracy (405, 450, 492, 620 nm)

0.000 – 2.000 OD    ≤ (0.5 % ± 0.010 OD) typical
2.000 – 3.000 OD    ≤ (1 % ± 0.010 OD) typical

Precision / Reproducibility (405, 450, 492, 620 nm)

0.000 – 2.000 OD    ≤ (0.5 % ± 0.005 OD)
2.000 – 3.000 OD    ≤ (1.0 % ± 0.005 OD)

* - optical absorption of standard filters 3.5 OD
** - up to 4 custom filters can be fitted on demand, up to 4.3 OD

Specification

Detection mode Absorbance
Light source LED, self-calibrating
Photodetector 8 silicon photodiodes
Plate type 96-well microplates (including strip-well microplates)
Reading speed 5-8 s per wavelength
Measurement modes Endpoint, kinetic and multi-label measurements
Measurement channels 8
Reference channel 1
Measurement range 0 – 4.3* OD
Resolution 0.0001 OD
Wavelength range 400 – 700 nm
Wavelength selection up to 8** filters on wheel, standard filters 405, 450, 492 and 620 nm
Shaking speed control range 4 amplitudes, 4 speeds
Software QuantAssay

Reader is compatible with IDEXX xChekPlus software
PC system requirements: Intel/AMD Processor, 1 GB RAM, Windows Vista/7/8/10/11, USB
Overall dimensions (W×D×H) 140 х 300 х 130 mm
Weight 4.6 kg
Input current/power consumption 12 V, 5 A / 60 W
External power supply Input AC 100–240 V, 50/60 Hz; Output DC 12 V
  • Cat. Nr.
    Description
    add toCart
    add toFavorites
    BS-050108-A02
    230VAC 50/60Hz Euro plug
    BS-050108-A03
    230VAC 50/60Hz UK plug
    BS-050108-A05
    100VAC 50/60Hz US plug, 120VAC 60Hz US plug
    BS-050108-DK
    IQ OQ document
    BS-050108-EK
    PQ document
    Optional light filters
    400
    400 nm
    455
    455 nm
    458
    458 nm
    460
    460 nm
    470
    470 nm
    480
    480 nm
    486
    486 nm
    488
    488 nm
    500
    500 nm
    508
    508 nm
    510
    510 nm
    515
    515 nm
    520
    520 nm
    532
    532 nm
    535
    535 nm
    540
    540 nm
    546
    546 nm
    550
    550 nm
    560
    560 nm
    568
    568 nm
    580
    580 nm
    589
    589 nm
    594
    594 nm
    600
    600 nm
    610
    610 nm
    632
    632 nm
    636
    636 nm
    640
    640 nm
    647
    647 nm
    650
    650 nm
    656
    656 nm
    660
    660 nm
    671
    671 nm
    676
    676 nm
    680
    680 nm
    685
    685 nm
    690
    690 nm
    694
    694 nm
  • OD Plate is the measurement verification instrument for microplate photometer MPP-96 HiPo. The instrument is designed to verify the accuracy and precision of measurements of the photometer at 6 levels …
