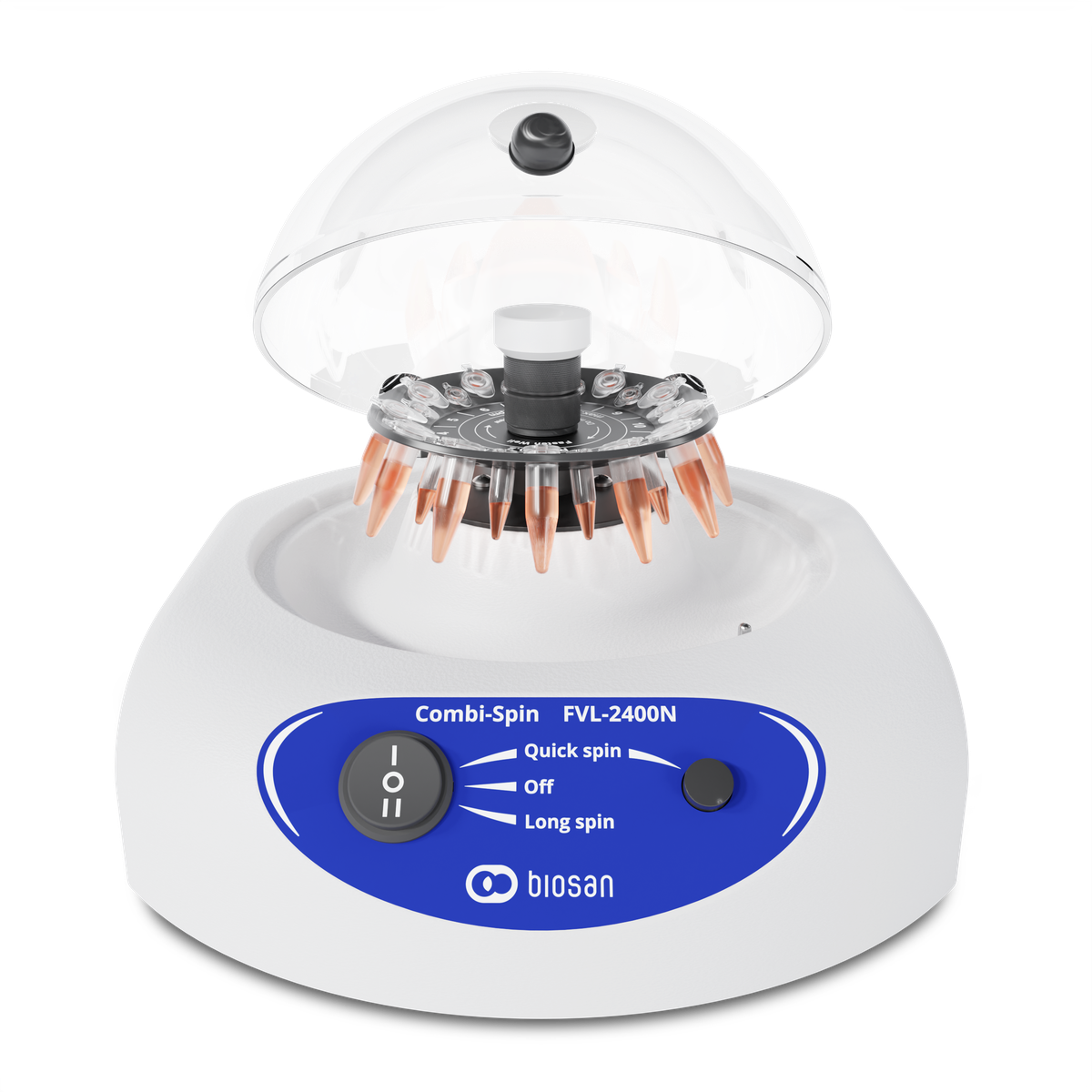

ask a questionMini-centrifuge/vortex Combi–Spin FVL-2400N is specially designed for genetic engineering research (for PCR–diagnostics experiments). Units can be used in microbiological, biochemical, clinical laboratories and industrial biotechnological laboratories.
Combi–Spin provides simultaneous mixing and separation of samples, using centrifuge and mixing modules, located on the common spin–module.
FVL-2400N is provided with protection mechanism that stops the rotor motion when the lid is opened.
Specification
| Rotation speed (fixed) (50 Hz) | 2800 rpm |
|---|---|
| Max. RCF (50 Hz) | 500 x g |
| Rotation speed (fixed) (60 Hz) | 3500 rpm |
| Max. RCF (60 Hz) | 700 x g |
| Continuous and impulse operation modes | + |
| Safety | Stop at open lid |
| Overall dimensions (W×D×H) | 190x235x125 mm |
| Weight | 1.7 kg |
| Power consumption (230V / 120 V) | 25 W (0.1 A) / 30 W (0.27 A) |
| Nominal operating voltage | 120 or 230 V; 50/60 Hz |
-
Why does the appliance has two values of speed?
The speed of the unit depends on the frequency of mains power supply. 2800 rpm for networks running at 50 Hz, 3500 rpm for networks running at 60 Hz.
Is unit supplied with rotors?
Unit is supplied with two rotors R-1.5 (12x1.5 ml microtubes) and R-0.5/0.2 (12x0.5 ml and 12x0.2 ml microtubes). Other rotors can be ordered separately.
-
Cat. Nr.Descriptionadd toCartadd toFavorites
-
![]()
Rotor for 4 x 8-section 0,2 ml microtube strips
* not compatible with Combi-Spins produced before 2015
