Description
For additional information

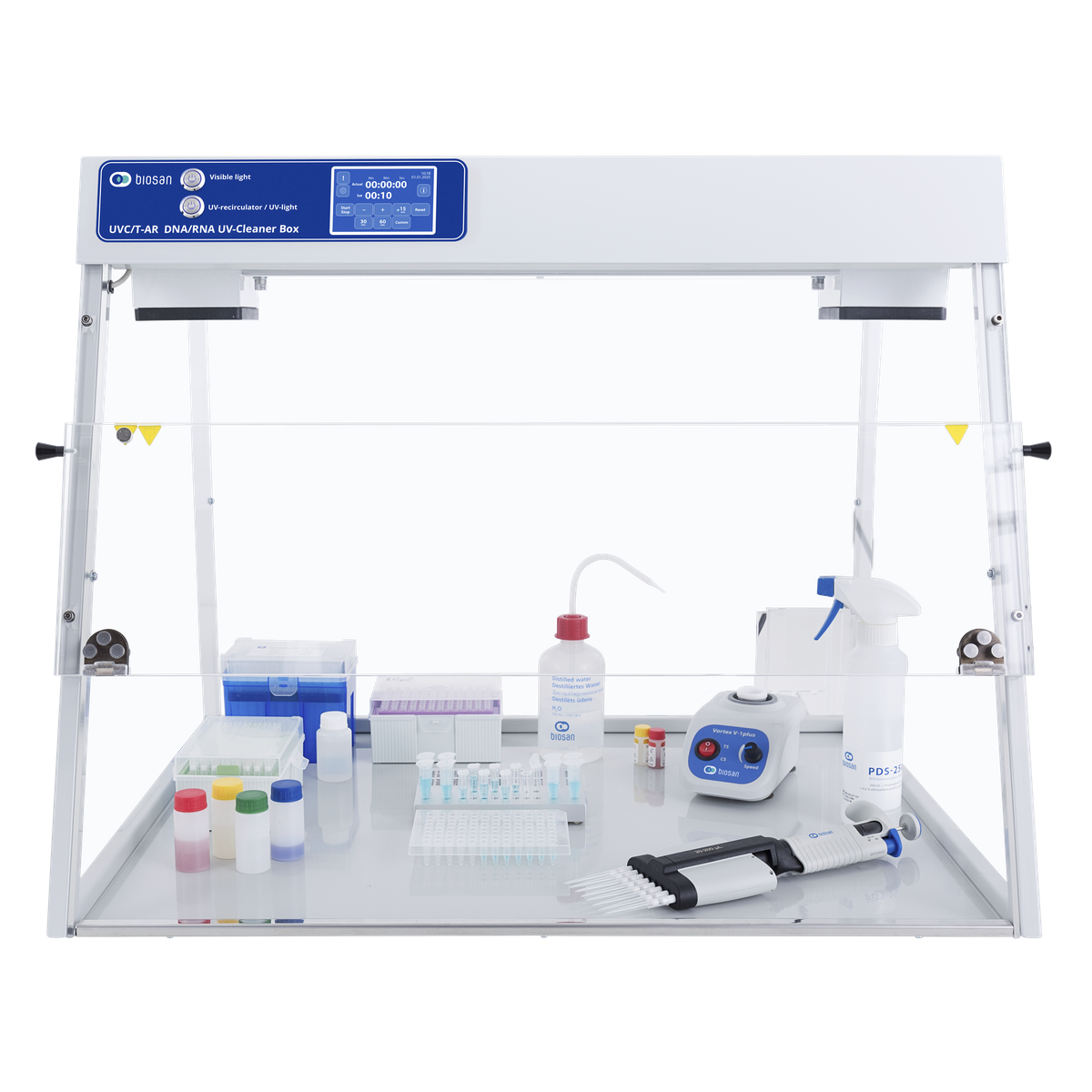

ask a questionThe Biosan UVC/T-AR is a benchtop DNA/RNA UV-cleaner workstation designed to create a clean, contamination-free environment for PCR setup and other nucleic acid–related workflows.
This model features a dual UV decontamination system: an open 254 nm UV-C lamp for surface and air disinfection, inactivating DNA/RNA contaminants, viruses, and bacteria within 15–30 minutes, and a patented UV air recirculator for continuous internal air irradiation. The recirculator processes the entire cabinet volume approximately 100 times per hour, ensuring clean working conditions without exposing users to UV light.
A touchscreen digital control panel simplifies operation by allowing intuitive programming of UV exposure cycles and real-time monitoring of lamp life. An energy-efficient 8W LED daylight lamp delivers bright workspace illumination while reducing energy consumption by ~50% compared to traditional fluorescent lighting.
Transparent panels increase user comfort by improving visibility inside the cabinet.
Key Features:
- High-intensity, ozone-free UV sterilization: 25 W UV-C lamp (253.7 nm) with ~9,000 h lifespan
- Patented UV air recirculatory: processes 20 m³/h for continuous internal decontamination
- Reliable safety control: automatic UV shut-off when the protective screen is opened
- UV-blocking panels: >99.9% UV protection ensures operator safety
- Ergonomic, durable design: metal frame and UV-resistant materials
- Transparent walls: for enhanced visibility and user comfort
- Digital touchscreen interface: for timer control, lamp status, and maintenance alerts
- Cable inlet: for operating small lab equipment inside
- Low noise, low energy consumption: quiet fan system and efficient operation
- Compatible with mobile T-4 tables with locking wheels and integrated drawer as well as with LT-120, LT-150, LT-180 height adjustable desks.
Specification
| Digital display & Lamp life timer | + |
|---|---|
| Display | 3.5″, medical glove compatible |
| Walls material | Plexiglas: Polymethyl methacrylate ALTUGLAS EX |
| Working surface material | Steel with chemicals resistant powder coating |
| Open UV-lamp | 1 x 25W built‑in bactericidal UV-C, TUV 25W 1SL/25 |
| UV radiation level | 18 mW / cm2 / sec |
| Radiation type | UV (λ = 253.7 nm), ozone-free |
| Digital time setting of direct UV exposure | 1 min–24 hrs / non–stop (increment 1 min) |
| UV-recirculator | 1x25W (efficiency >99% per 1 hour) |
| Daylight lamp (for working area illumination) | 1 x LED-8W |
| Thickness of side panels | 4 mm |
| Thickness of upper front panel | 8 mm |
| Thickness of screen | 8 mm |
| Optical transmission | 92% |
| UV protection | >99.90% Polymethyl methacrylate ALTUGLAS EX |
| Working area | 645 × 490 mm |
| Opening dimensions (fully raised protective screen) | 645 × 165 mm |
| Safety features | Automatic open UV-lamp switch off when screen is open |
| Power outlets inside the unit | Inlet for power cords |
| Overall dimensions (W×D×H) | 720 × 535 × 555 mm |
| Weight (net / gross) | 21.4 / 30 kg |
| Power consumption | 64 W |
| Nominal operating voltage | 100-240 V, 50/60Hz |
| Optional table | T-4 (800 × 600 × 770 mm) |
-
How efficient is a UV-Cleaner box?
Biosan`s UV-Cleaner box with UV-Recirculator provide efficient DNA amplicon decontamination that has been proven experimentally. See brochure.
-
