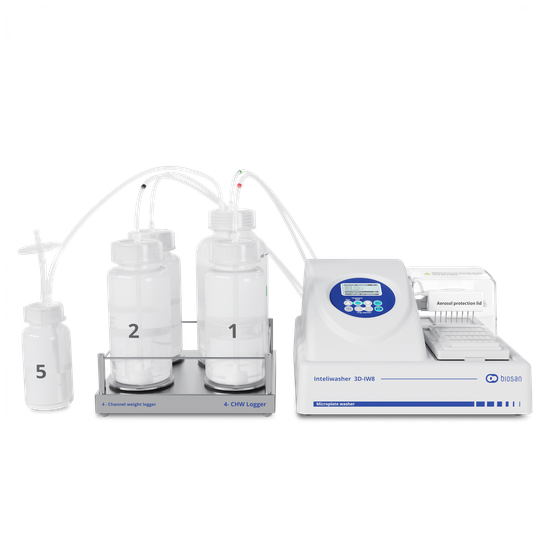

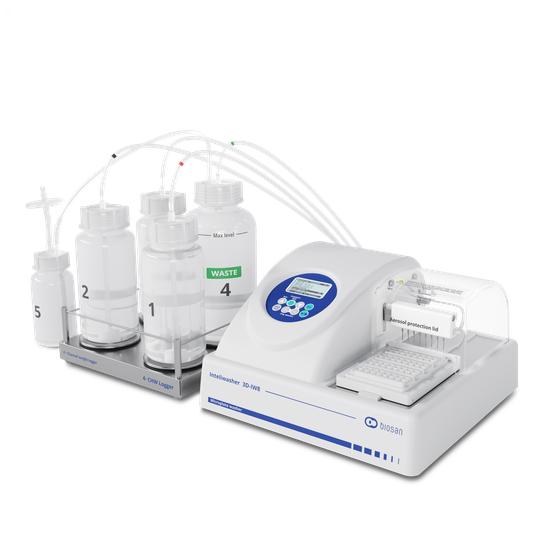

ask a questionInteliwasher 3D-IW8 series microplate washer is designed for washing various types of standard 96-well microtitre plates, microstrips as well as microarrays on FastFRAME (rectangular well shape). It is suitable for washing wells with different bottom shapes: flat, U-shape and V-shape. The unit is fully programmable ensuring multi-step solution ripening, aspiration (aspiration, combination of aspiration/liquid dispensing and soaking, as well as soaking cycle during a particular period of time). Dispense system of liquid dosage for each channel separately.
The unit provides:
- Washing mode
- Rinsing mode
- Mixing mode
- Single point, two point, circular (circle or rectangular path) aspiration
- Possibility of additional solution mixing during time gap between two work cycles
- Possibility to use microtest plates by different manufacturers, ensured by automated plate set up (adjusting to different depths of plate wells)
- Round-bottom plate and strip washing mode
- Possibility of user-defined programs with adjustable parameters
The unit has 50 programs divided into 5 following aspiration categories (see figure rightward):
- Type 1 (1.0–1.9) IPF96 U/V is intended for round and V-shape immunoplates, 1 point aspiration.
- Type 2 (2.0–2.9) IPF96 FLAT-2 is intended for flat-bottom shape immunoplates, 2 point aspiration.
- Type 3 (3.0–3.9) IPF96 FLAT-C is intended for rectangular shape immunoplates, full-circle aspiration direction.
- Type 4 (4.0–4.9) FastFRAME-2 is intended for multi-slide plate* with rectangular wells.
- Type 5 (5.0–5.9) FastFRAME-C is intended for multi-slide* plate with rectangular wells.
* - The FastFRAME (GVS Life Sciences) multi-slide plate or analog plate of another manufacturer, that is compatible with standard 25 x 76 mm (1 x 3 inch) glass slides.
The unit is designed for use in closed laboratory rooms at temperatures from +10°С to +35°С and relative humidity up to 80% at +25°С decreasing linearly to 50% relative humidity at 35°C.
4-channel washing solution weight logger, 4 CHW Logger provides automatic control of rinsing solution and waste volumes. The washer shows remaining volume for each bottle as percentage and gives a warning message in case of low solution volume or full waste bottle when 4 CHW Logger is connected.
Minimum dispense volume | 25 μl |
---|---|
Maximum dispense volume | 1600 μl |
Dispense increment | 25 μl |
Dispensing accuracy | ±2.5% |
Allowed residual liquid volume in plate well | not more than 2 μl |
Number of wells washed simultaneously | 8 |
Number of washing cycles | 1–15 |
Aspiration time | 1–3 s |
Aspiration/dispensing speed | 3 levels |
Max. number of channels in a program | 2 |
Choice of 3 washing liquid bottles | + |
Soaking time | 0–300 s (increment 10 s) |
Shaking time | 0–150 s (increment 5 s) |
Number of washed rows | 1 – 12 |
Time of plate single wash (350 μl), not more | 45 s |
Number of programs | 50 |
Plate platform and washing head movement | automated |
Indication of operation modes | LCD, 8-line |
Overall dimensions (W×D×H) | 375 х 345 х 180 mm |
Weight | 9.9 kg |
Input current/power consumption | 12 V DC, 1.8 A / 22 W |
External power supply | Input AC 100–240 V; 50/60 Hz; Output DC 12 V |
-
4-channel washing solution weight logger, 4 CHW Logger provides automatic control of rinsing solution and waste volumes. The washer shows remaining volume for each bottle as percentage and gives a …
