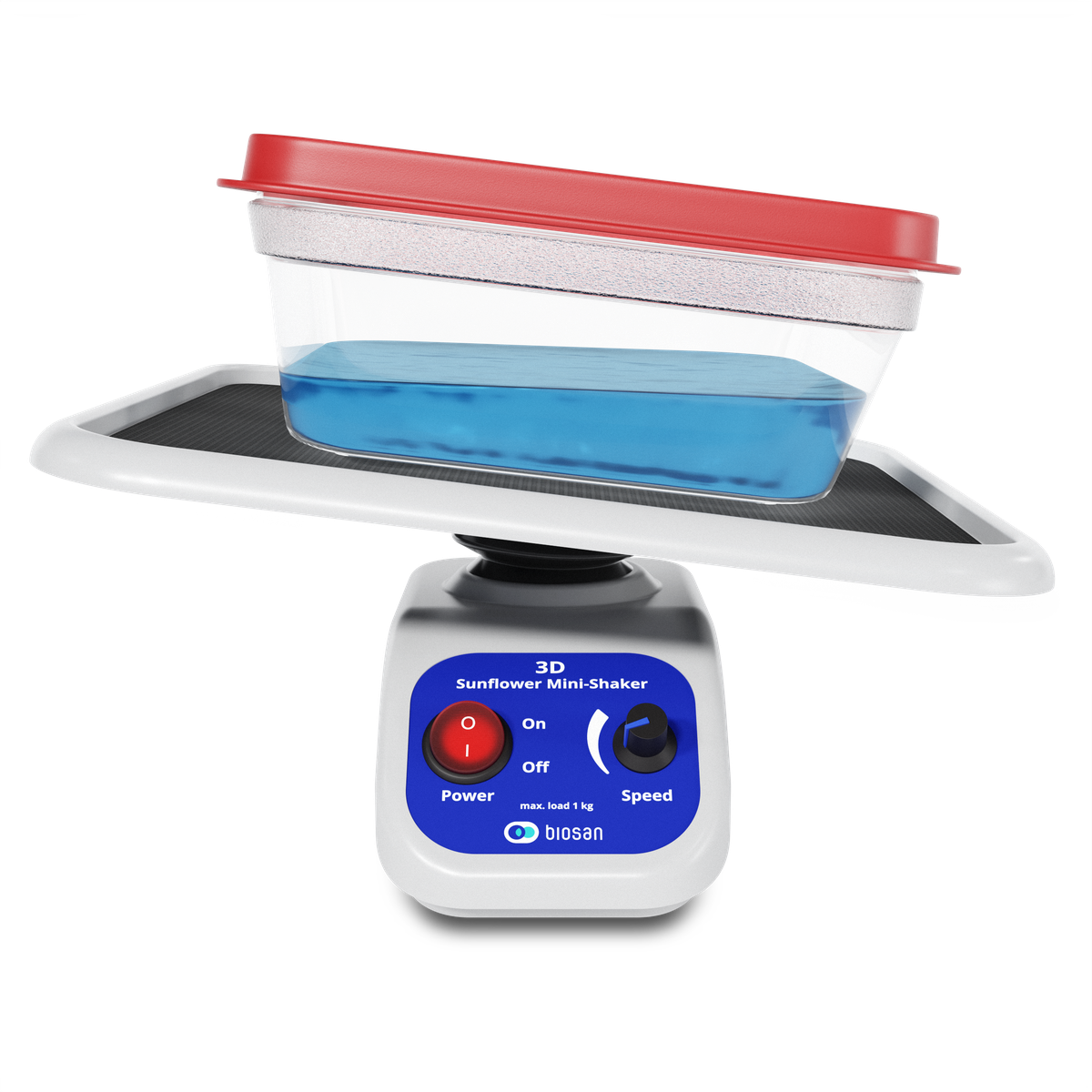

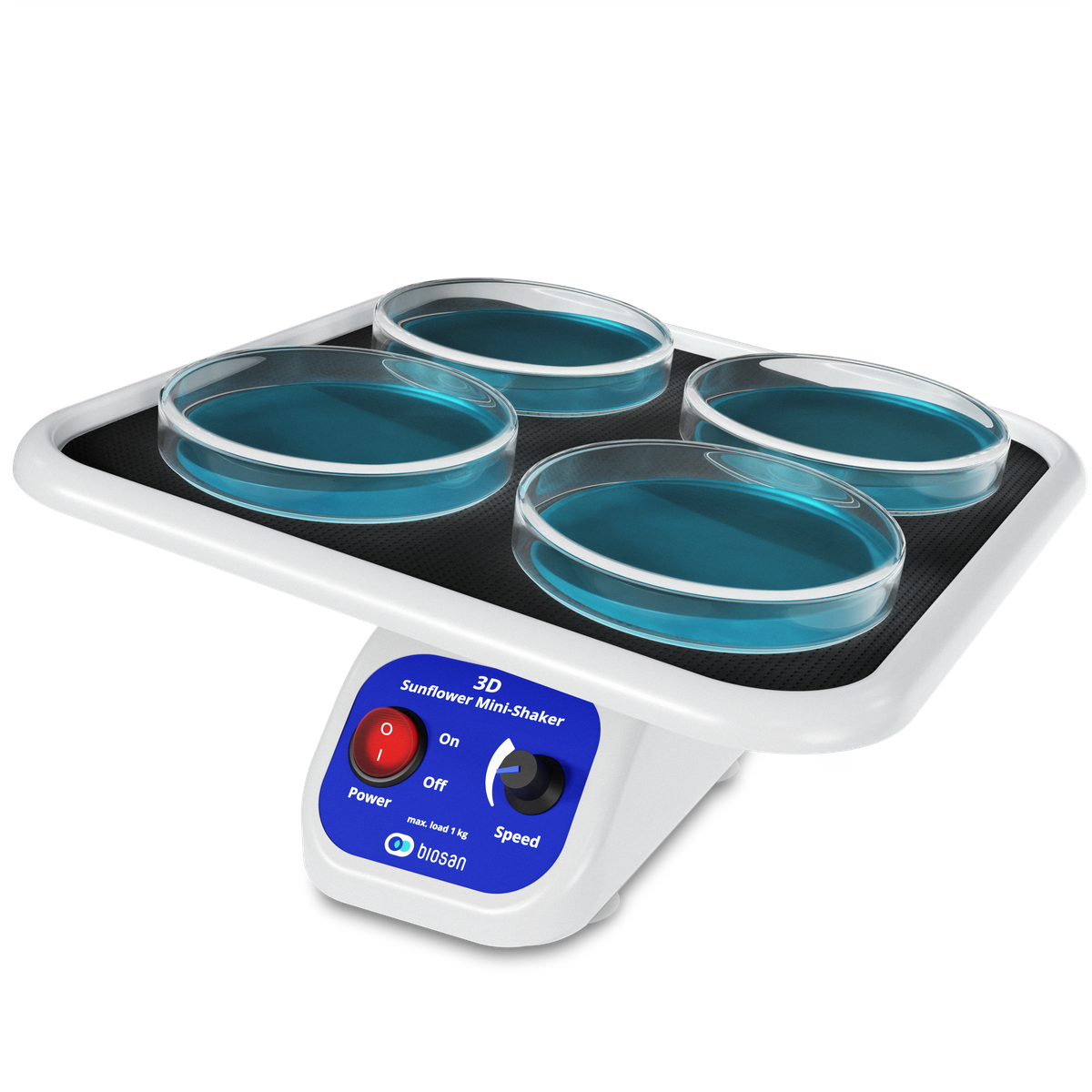

“Sunflower” 3D Mini–Shaker provides adjustable three-dimensional smooth rotation of the platform and is designed for mixing blood  samples, for minigel staining and destaining, sample washing, blot hybridization reactions.

Mini–Shaker is a compact device with low energy consumption. The use of direct drive and brushless motor allows continuous mixing up to 7 days and ensures reliable, trouble-free operation for more than 2 years.

Non–slip, temperature resistant, silicone mat located on the shaker’s platform provides stable position for vessels during shaking. The platform is suitable for placing a versatile dimpled PDM mat for different size tubes.

Mini–Shaker can be used in cold rooms or incubators, operating at ambient temperature range +4°C to +40°C.

Optional dimpled mat PDM prevents different size tubes from rolling around the platform.


Speed control range 5–60 rpm
Fixed tilt angle
Direct drive mechanism +
Maximum continuous operation time 168 h
Maximum load 1 kg
Platform working area 215x215 mm
Overall dimensions (W×D×H) 235x235x140 mm (with platform)
Weight 1.2 kg
Input current/power consumption 12 V, 260 mA/3.1 W
External power supply Input AC 100–240 V; 50/60 Hz; Output DC 12 V
