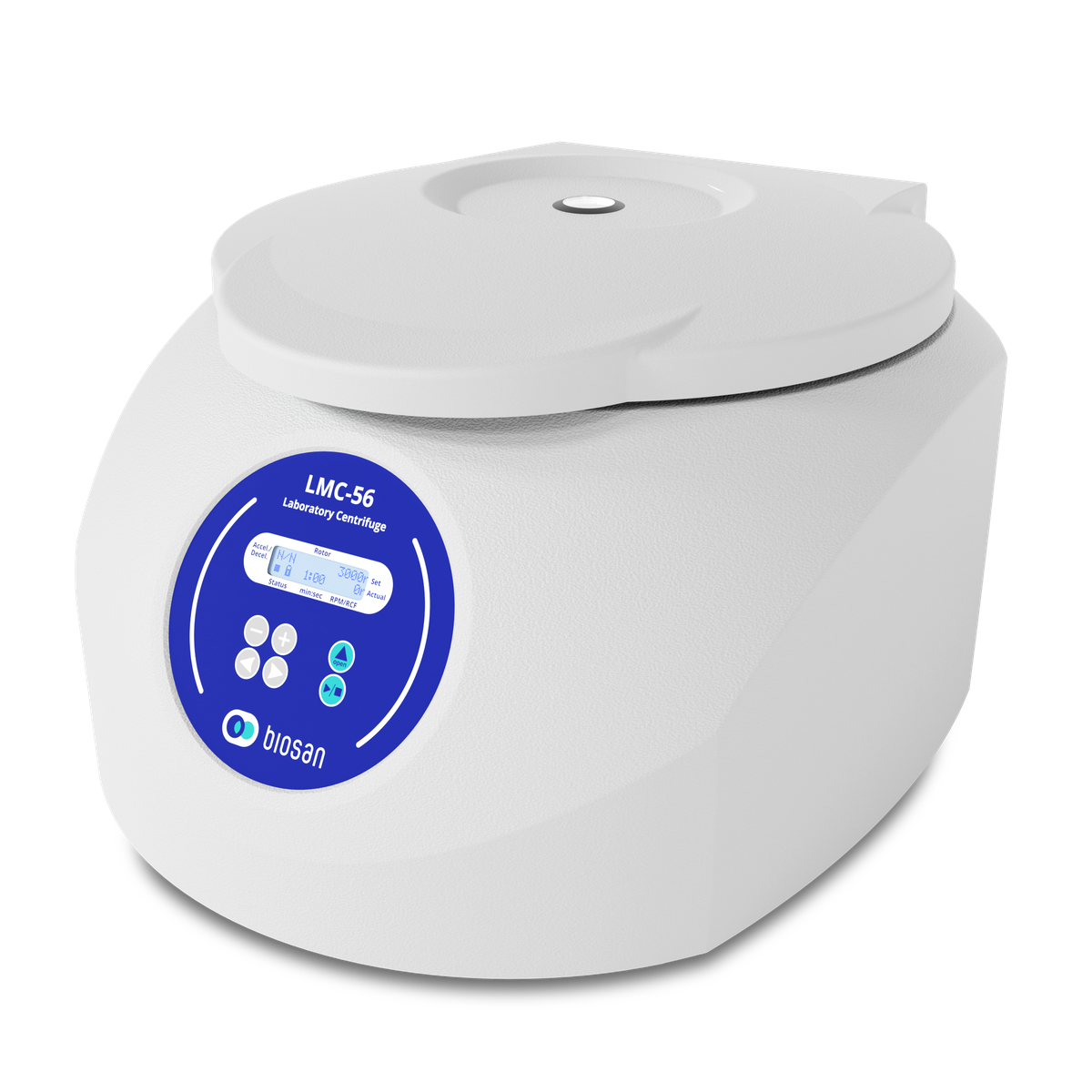

Announcement. LMC-56 is a bench-top, low speed multifunctional centrifuge for routine laboratory tasks. Perfect for biochemical, cytological, immunological analyzes. Can be used for sample preparation in research, biomedical and genetic laboratories. The precursor of this centrifuge is well-known among users in Europe laboratory centrifuge LMC-3000.

Features:

  • User-friendly centrifugation parameter input and simultaneous display of the set and actual parameter values.
  • Safe assay performance: metal protective housing and metal lid, automatic imbalance switch-off, lid lock during the centrifuge operation provide safe operation at all speeds.
  • Rotor imbalance automatic diagnostics (emergency stop, imbalance indication).
  • Automatic rotor detection with active rotational speed limit
  • Relatively high speed - maximum 6,000 rpm or 3,160 g;

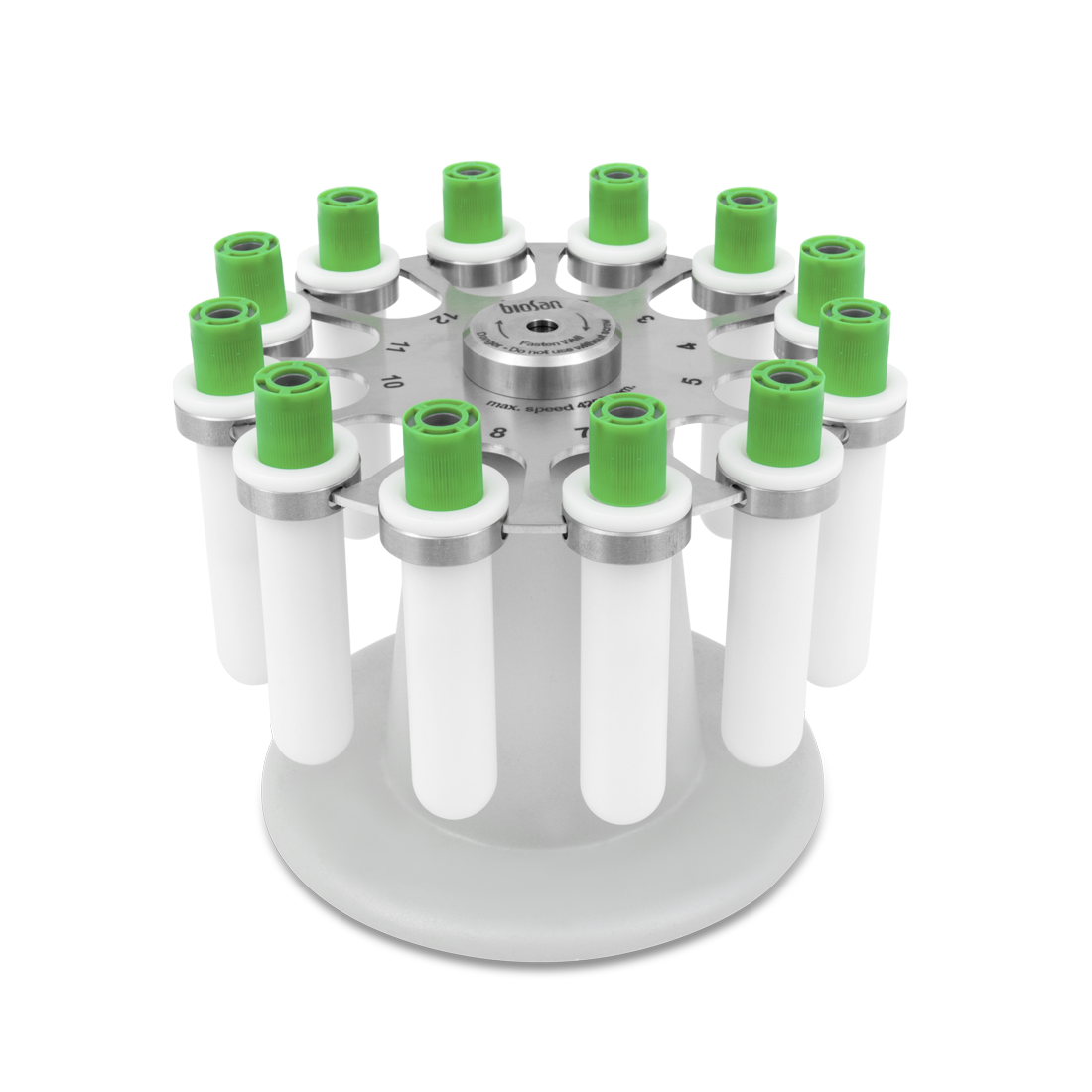

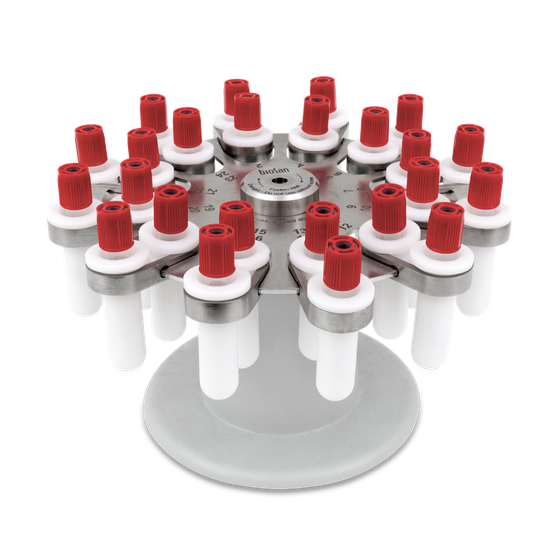

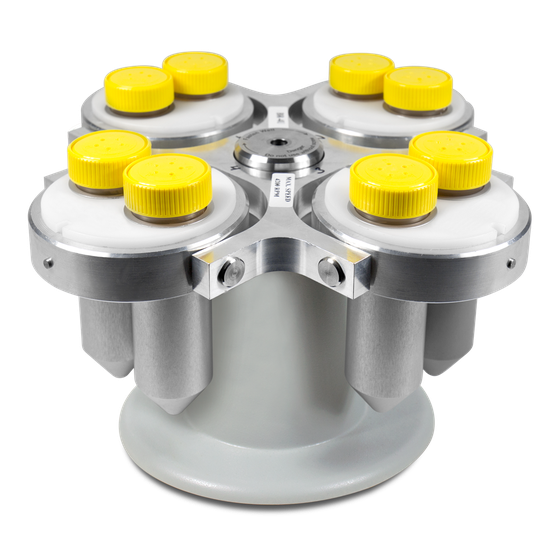

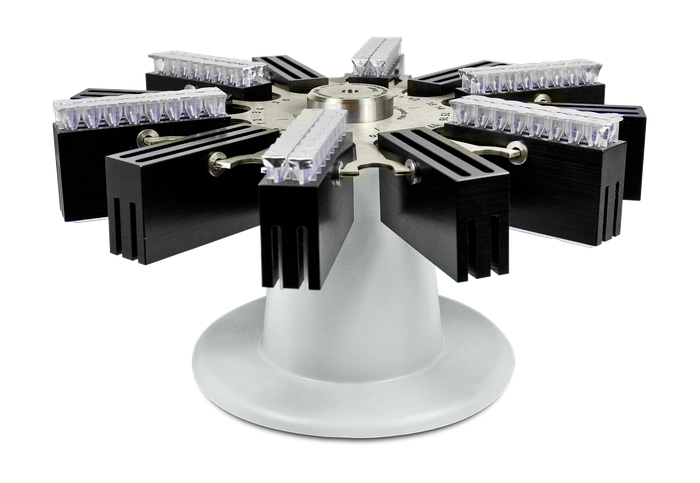

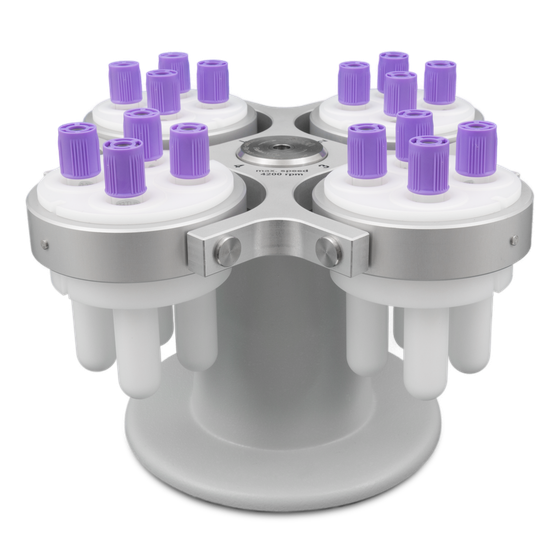

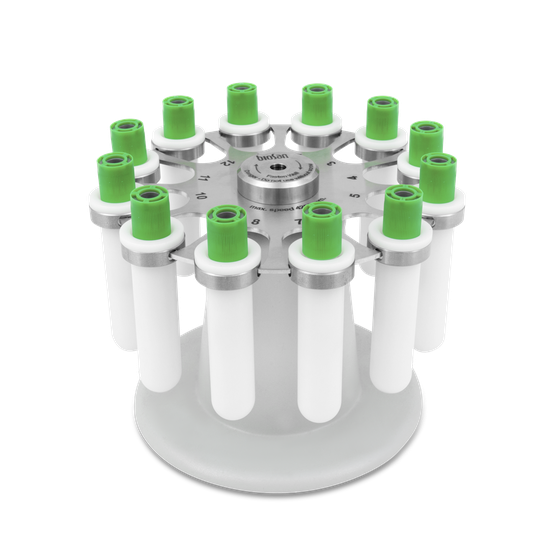

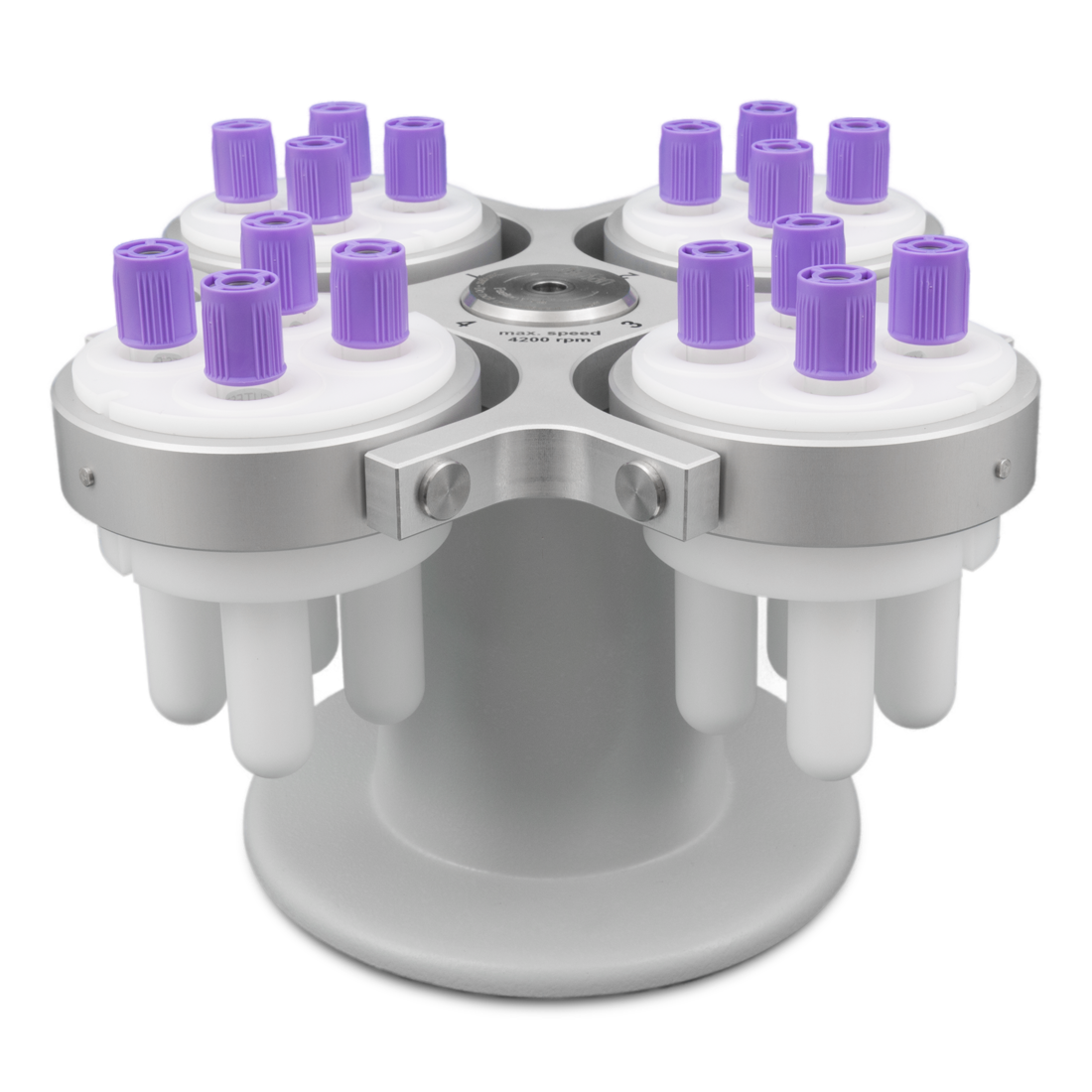

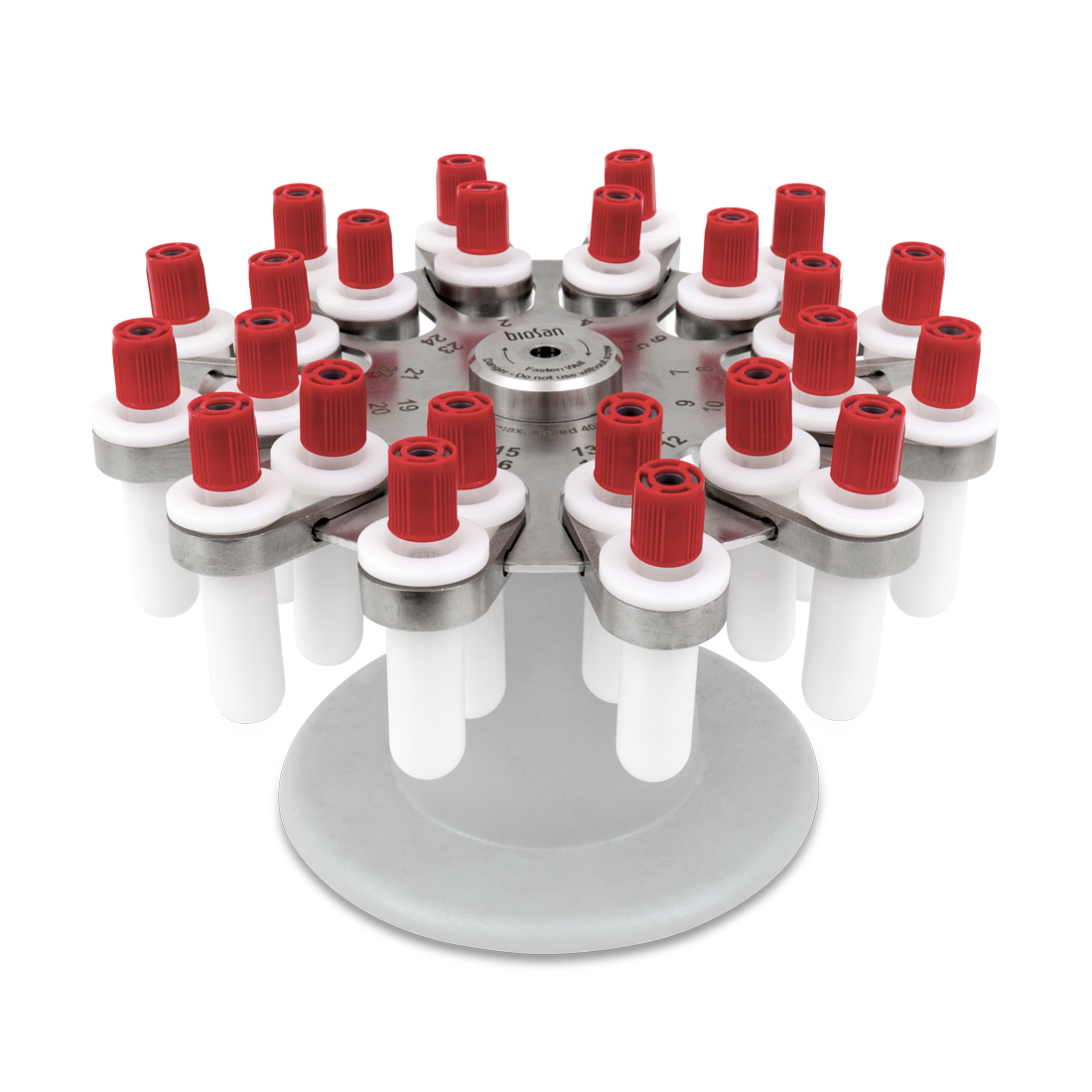

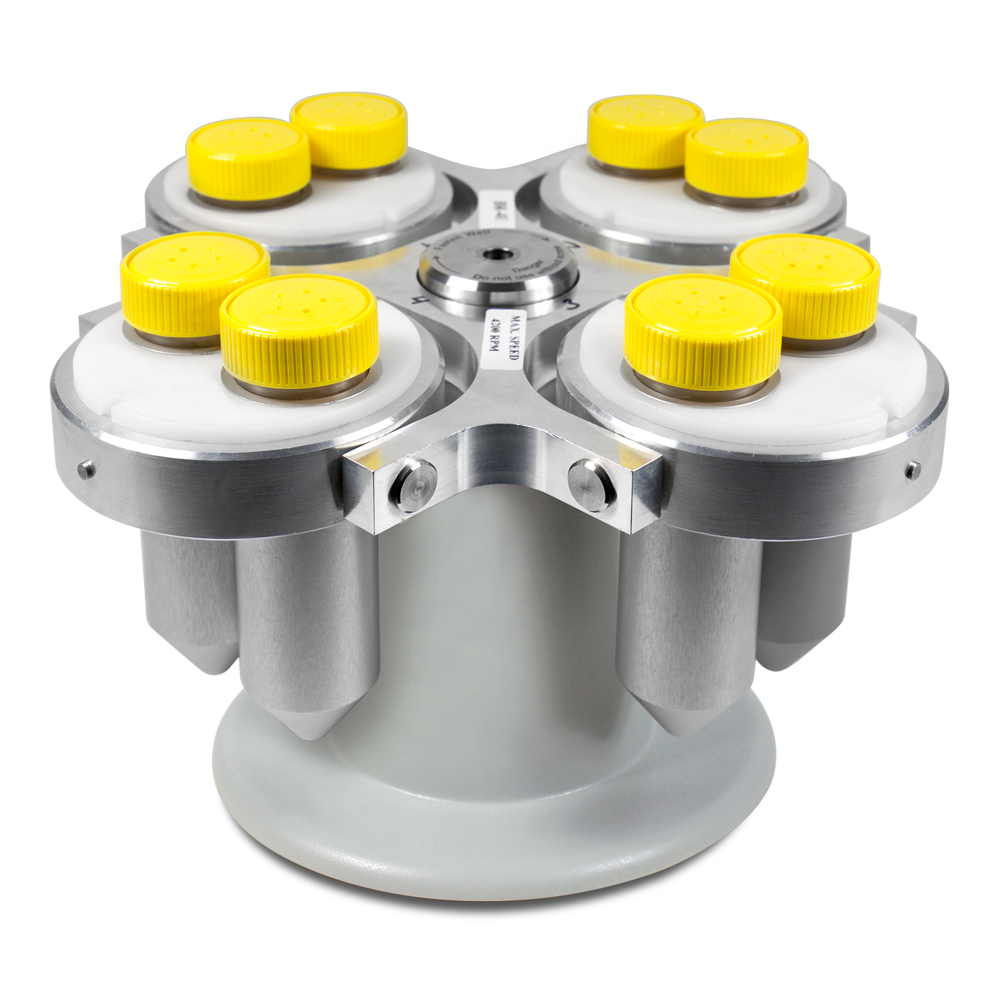

  • A wide selection of rotors — up to 13;
  • Improved chamber to reduce sample heating during centrifugation;
  • Different modes of acceleration and deceleration, including deceleration mode with switched off forced braking.
  • Possibility to set the speed both in revolutions per minute and by relative centrifugal force.





Specification

Speed regulation range for centrifuge tubes 100-6000 rpm
(3160 × g)

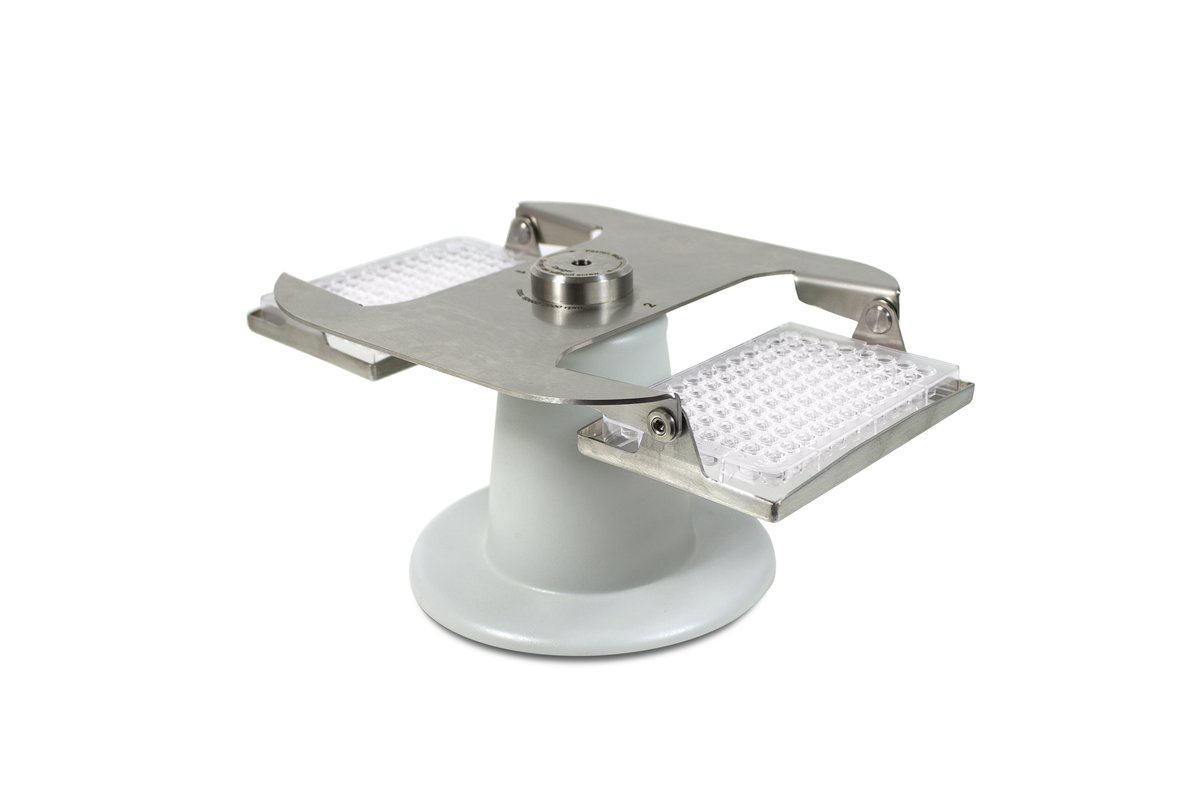

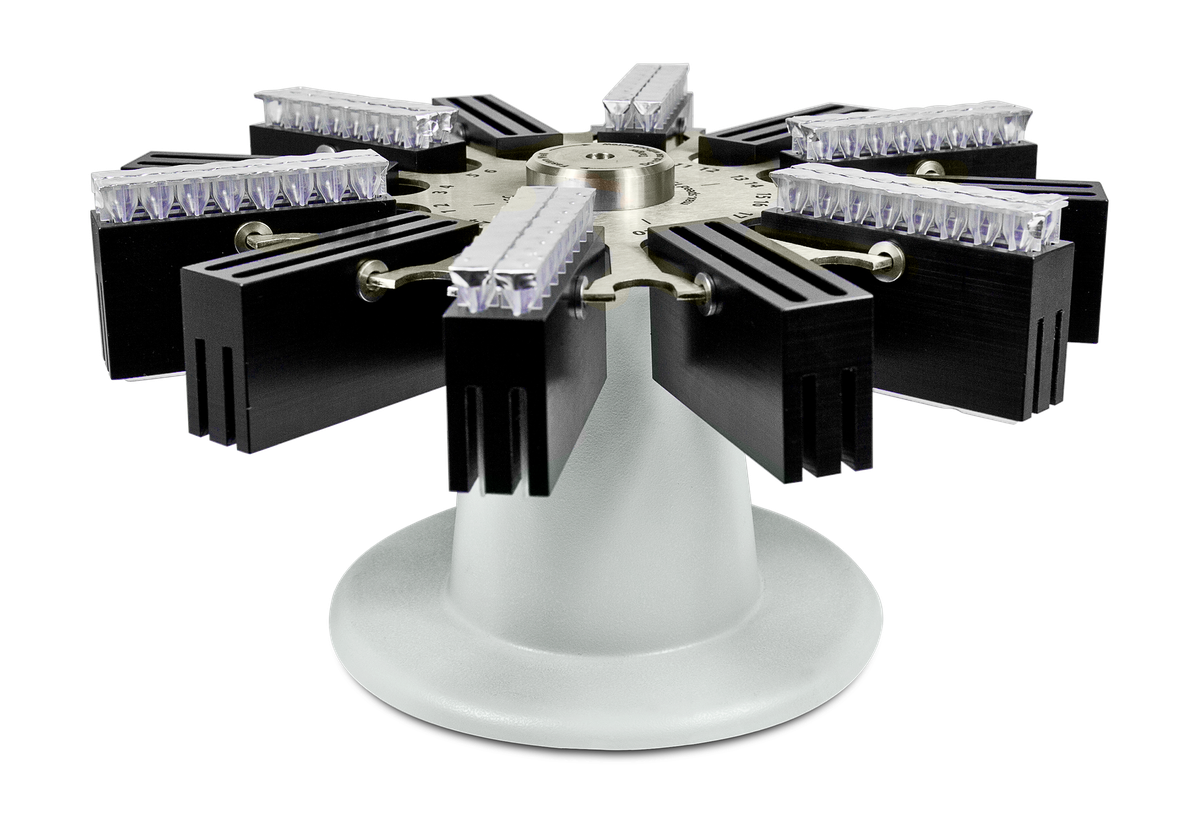

Speed regulation range for microtitre plates 100-2000 rpm
(560 × g)
Setting resolution 100 rpm
Digital time setting 1 - 90 min (increment 1 min)
Timer sound signal +
Rotor imbalance diagnostics (automatic stop, “IMBALANCE” warning) +
Display LCD, 2 x 16 signs
Chamber diameter 355 mm
Overall dimensions (W×D×H) 560 × 480 × 315 mm
Weight 16.5 kg
Nominal operating voltage 230 V, 50/60 Hz or 120 V, 50/60 Hz
Power consumption (230V / 120 V) 320 W / 330 W
